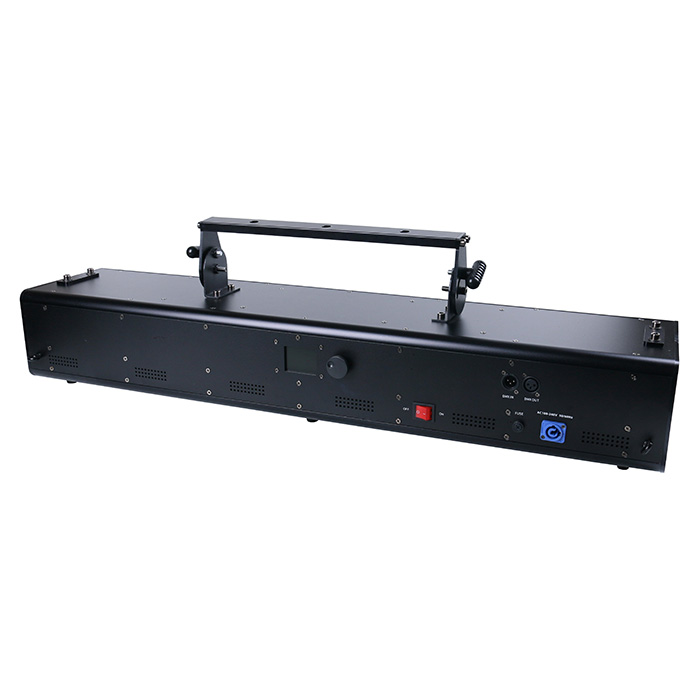

Scanner Series 6*2.5W/1W RGB full color animation laser array SPL-RGB-509

Item No:SPL-RGB-509 15W/SPL-RGB-509 6W

Power supply:AC 100-240V 50/60Hz

Power consumption:170W/120W

Total Laser power:6*2.5W RGB laser/6*1W RGB laser

Laser safety:Class 3B

Laser power/wavelength:6pcs 2.5W intergrated RGB laser Red: 450MW/638nm+Green: 700MW/520nm+Blue: 1400MW/445nm )

6pcs 1W intergrated RGB laser (Red: 450MW/638nm+Green: 100MW/520nm+Blue:600MW/445nm )

Scan system: 15K scanner

Scanning anngle:±20°

Modulation:Analog

Control mode:DMX512/Auto/Sound/Master Slave

DMX channel:20CH/120CH

Internal Patterns:100 patterns

Display:2.4ft color Display

IP rating:IP20

N.W.(KG):19.8KG

G.W.(KG):22KG

Product dimension:1000*249*290mm
Carton size:112*34*37cm (flight case, 1PC/CN)
